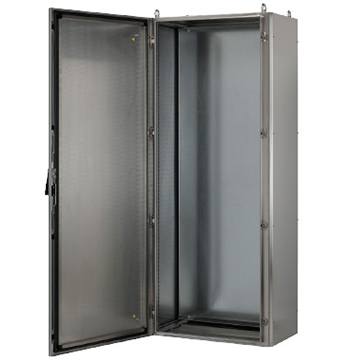

RC COMPACT FREE-STANDING ENCLOSURES WITH REMOVABLE SIDES AND SOLID DOOR

Compact stainless steel enclosures with solid door and removable sides to allow the installation of internal side panels. They can be customized with a range of standard accessories and special machining to customers’ requests. Suitable for use in harsh environments, they provide protection from aggressive substances, for example in the food, pharmaceutical, chemical and naval industries.

RETRACTABLE INTERNAL PLATE. The internal plate is inserted from the front and is designed to make the most of the enclosure depth.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM. Designed to make the most of the space available.

MICRO-CAST HINGES Concealed stainless steel micro-cast hinges for enclosure doors that fit entirely within the enclosure opening.

POLYURETHANE GASKET. Operating temperature range: -40°C +90°C.

Point to each picture to read its caption

RETRACTABLE INTERNAL PLATE. The internal plate is inserted from the front and is designed to make the most of the enclosure depth.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM. Designed to make the most of the space available.

MICRO-CAST HINGES Concealed stainless steel micro-cast hinges for enclosure doors that fit entirely within the enclosure opening.

POLYURETHANE GASKET. Operating temperature range: -40°C +90°C.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN 62208: IP66 IK10 UL508A – CSA 22,2: NEMA Type 1,12,4,4X ATEX: II 3G 3D
Materials	Stainless steel: AISI 304 / WNr. 1.4301. On request: AISI 316 / WNr. 1.4404. Finish: Scotch-Brite Thickness: Body: da 1,5mm / Door and back panel: form 1,5mm / Side panels: da 1,5mm Cable entry plate: galvanised sheet metal Thickness: 2,5 mm.
Body	Made from bent and TIG-welded sheet metal. High-seal M12 top and bottom bushings welded to the body for lifting the enclosure, or fixed to the plinth/feet.
Door	AISI 304 stainless steel concealed hinges; door opening greater than 120°. Cremone bolts on 4 points, ergonomic handle with 3 mm double bit lock (on demand AISI 304 and different inserts). Polyurethane gasket (temp. range -40°C +90°C). A drilled tubular frame strengthens the door and is used to install accessories (from B600mm up). Double door version: double hinged doors (with RH main door).
Provided	Grounding accessories and pallet packing.
Customization	Drilling to drawings and ad hoc solutions.
Accessories	Internal plate: inserted from the front – Inserted from the side on guides. Side panels Cable entry plates – double cable gland plates Plinths: h100 - h200 – closed bottom panel – feet Rain canopy – Hygienic design

MAXIMUM CAPACITIES

DOOR	STANDARD BACK PLATE	SIDE PANEL	TOTAL CAPACITY

Dimensional table available in the pdf version of the general catalogue. Request it here.

DIMENSION TABLE

DIMENSIONS			CODE	DOOR	WEGHT	INTERNAL PLATE DIMENSIONS			DRILLING AREA				CABLE ENTRY PLATE AREA			CERTIFICATION
	H	P				Bp	Bp1	Hp	Bf	Bf1	Hf	Pf	Bb	Bb1	Pb	EN62208	UL/CSA	ATEX
mm	mm	mm		Nr°	Kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	EN60529 EN62262	On request	On request
600	1600	400	RCA06016040	1	78,00	500	600	1580	410	-	1445	263	410	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	1800	400	RCA06018040	1	87,00	500	600	1780	410	-	1645	263	410	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	1800	500	RCA06018050	1	99,00	500	600	1780	410	-	1645	363	410	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	2000	500	RCA06020050	1	109,00	500	600	1980	410	-	1845	363	410	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1600	400	RCA08016040	1	91,00	700	800	1580	610	-	1445	263	610	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1800	400	RCA08018040	1	100,00	700	800	1780	610	-	1645	263	610	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1800	500	RCA08018050	1	113,00	700	800	1780	610	-	1645	363	610	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	2000	400	RCA08020040	1	110,00	700	800	1980	610	-	1845	263	610	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	2000	500	RCA08020050	1	124,00	700	800	1980	610	-	1845	363	610	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	2000	600	RCA08020060	1	138,00	700	800	1980	610	-	1845	463	610	-	410	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	1800	400	RCA10018040	1	114,00	900	1000	1780	810	-	1645	263	810	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	2000	500	RCA10020050	1	139,00	900	1000	1980	810	-	1845	363	810	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1200	1600	400	RCA12016040	2	119,00	1100	1200	1580	-	455	1445	263	-	410	210	IP55/IK10	NEMA 1,12	-
1200	1800	400	RCA12018040	2	132,00	1100	1200	1780	-	455	1645	263	-	410	210	IP55/IK10	NEMA 1,12	-
1200	1800	500	RCA12018050	2	146,00	1100	1200	1780	-	455	1645	363	-	410	310	IP55/IK10	NEMA 1,12	-
1200	2000	500	RCA12020050	2	159,00	1100	1200	1980	-	455	1845	363	-	410	310	IP55/IK10	NEMA 1,12	-
1200	2000	600	RCA12020060	2	175,00	1100	1200	1980	-	455	1845	463	-	410	410	IP55/IK10	NEMA 1,12	-
1600	1800	500	RCA16018050	2	158,00	1500	1600	1780	-	655	1645	363	-	610	310	IP55/IK10	NEMA 1,12	-
1600	2000	500	RCA16020050	2	189,00	1500	1600	1980	-	655	1845	363	-	610	310	IP55/IK10	NEMA 1,12	-
1600	2000	600	RCA16020060	2	206,00	1500	1600	1980	-	655	1845	463	-	610	410	IP55/IK10	NEMA 1,12	-

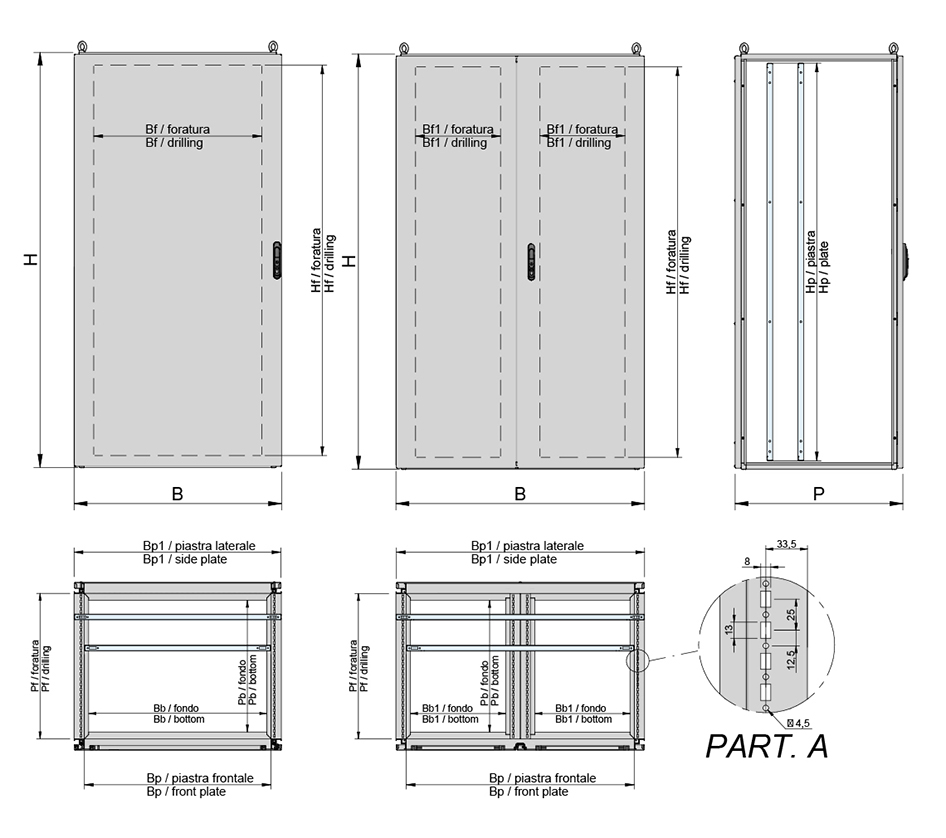

TECHNICAL DRAWING

GO TO THE ACCESSORIES PAGE

DOWNLOAD THE GENERAL CATALOGUE

Download the IP Rating and declarations of conformity

IP Rating	CE declaration of conformity	ATEX declaration of conformity	UL_CSA declaration of conformity
		--
