MC MODULAR FREE-STANDING ENCLOSURES WITH SOLID DOOR

A wide range of accessories and special customization solutions, together with meticulously designed details and technical solutions for improved functionality, safety and structural sturdiness are the key elements that make the Compex range of modular enclosures with solid door the safest place to keep large electrical equipment and components. Made of stainless steel, they are ideal for harsh environments and particularly suitable for use in the food, pharmaceutical, chemical and naval industries, where maximum resistance to aggressive substances is required.

MICRO-CAST HINGES. Concealed stainless steel micro-cast hinges for enclosure doors that fit entirely within the enclosure opening.

HIGH SEAL DOOR. Designed to ensure maximum sealing efficiency between the door and the enclosure body.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM Designed to make the most of the space available.

SAFE ROUNDED EDGES. To prevent accidental cuts when wiring the enclosure all the edges are bent and the corners blunted.

Point to each picture to read its caption

MICRO-CAST HINGES. Concealed stainless steel micro-cast hinges for enclosure doors that fit entirely within the enclosure opening.

HIGH SEAL DOOR. Designed to ensure maximum sealing efficiency between the door and the enclosure body.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM Designed to make the most of the space available.

SAFE ROUNDED EDGES. To prevent accidental cuts when wiring the enclosure all the edges are bent and the corners blunted.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN 62208: IP66 IK10 UL508A – CSA 22,2: NEMA Type 1,12,4,4X ATEX: II 3G 3D
Materials	Stainless steel: AISI 304 / WNr. 1.4301. On request: AISI 316 / WNr. 1.4404. Finish: Scotch-Brite Thickness: Door and back panel: form 1,5 mm Canopy and bottom panel: from 1,5 mm Side panels: from 1,5 mm Cable entry plate: galvanised sheet metal Thickness: from 2,5 mm
Body	Multiple bent, drilled profile welded onto a micro-cast tripod. Removable top and bottom panel obtained from bent, welded metal sheets.
Door	6 mm thick transparent polycarbonate window. AISI 304 stainless steel concealed hinges; door opening greater than 120°. Cremone bolts on 4 points, ergonomic handle with 3 mm double bit lock (on demand AISI 304 and different inserts). Polyurethane gasket (temp. range -40°C +90°C). A drilled tubular frame strengthens the door and is used to install accessories (from B600mm up).
Provided	Grounding accessories and pallet packing.
Customization	Drilling to drawings and ad hoc solutions.
Accessories	Internal plate: inserted from the side on guides Side panels Cable entry plates – double cable gland plates Enclosure coupling kit Plinths: h100 - h200 – closed bottom panel – feet Rain canopy – Hygienic design Inner door

MAXIMUM CAPACITIES

DOOR	STANDARD BACK PLATE	SIDE PANEL	TOTAL CAPACITY

Dimensional table available in the pdf version of the general catalogue. Request it here.

DIMENSION TABLE

DIMENSIONS			CODE	DOOR	WEGHT	INTERNAL PLATE DIMENSIONS		DRILLING AREA				CABLE ENTRY PLATE AREA			CERTIFICATION
	H	P				Bp	Hp	Bf	Bf1	Hf	Pf	Bb	Bb1	Pb	EN62208	UL/CSA	ATEX
mm	mm	mm		Nr°	Kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	EN60529 EN62262	On request	On request
400	1800	500	MCA04018050	1	105,00	400	1780	210	-	1685	400	272	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
400	1800	600	MCA04018060	1	113,00	400	1780	210	-	1685	500	272	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
400	2000	500	MCA04020050	1	115,00	400	1980	210	-	1885	400	272	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
400	2000	600	MCA04020060	1	123,00	400	1980	210	-	1885	500	272	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	1800	500	MCA06018050	1	130,00	600	1780	410	-	1685	400	472	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	1800	600	MCA06018060	1	138,00	600	1780	410	-	1685	500	472	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	2000	500	MCA06020050	1	142,00	600	1980	410	-	1885	400	472	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	2000	600	MCA06020060	1	150,00	600	1980	410	-	1885	500	472	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1800	500	MCA08018050	1	153,00	800	1780	610	-	1685	400	672	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1800	600	MCA08018060	1	162,00	800	1780	610	-	1685	500	672	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	2000	500	MCA08020050	1	168,00	800	1980	610	-	1885	400	672	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	2000	600	MCA08020060	1	177,00	800	1980	610	-	1885	500	672	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	1800	500	MCA10018050	1	178,00	1000	1780	810	-	1685	400	872	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	1800	600	MCA10018060	1	187,00	1000	1780	810	-	1685	500	872	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	2000	500	MCA10020050	1	194,00	1000	1980	810	-	1885	400	872	-	342	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	2000	600	MCA10020060	1	204,00	1000	1980	810	-	1885	500	872	-	442	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1200	1800	500	MCA12018050	2	212,00	1200	1780	-	455	1685	400	-	472	342	IP55/IK10	NEMA 1,12	-
1200	1800	600	MCA12018060	2	221,00	1200	1780	-	455	1685	500	-	472	442	IP55/IK10	NEMA 1,12	-
1200	2000	500	MCA12020050	2	231,00	1200	1980	-	455	1885	400	-	472	342	IP55/IK10	NEMA 1,12	-
1200	2000	600	MCA12020060	2	241,00	1200	1980	-	455	1885	500	-	472	442	IP55/IK10	NEMA 1,12	-

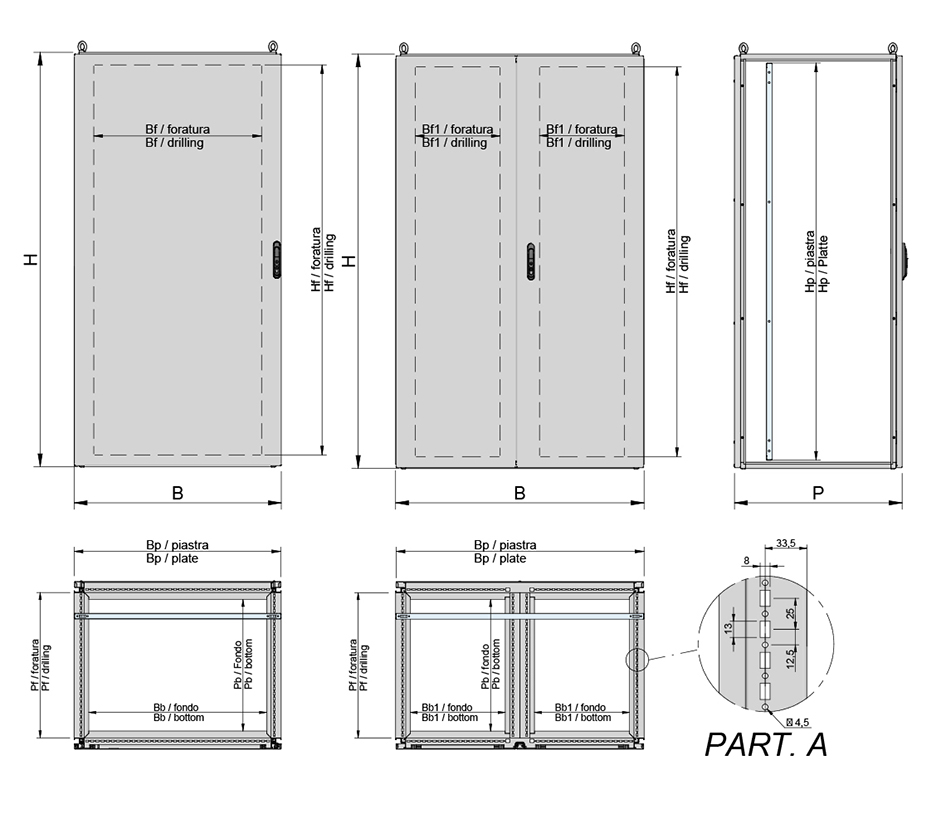

TECHNICAL DRAWING

GO TO THE ACCESSORIES PAGE

DOWNLOAD THE GENERAL CATALOGUE

Download the IP Rating and declarations of conformity

IP Rating	CE declaration of conformity	ATEX declaration of conformity	UL_CSA declaration of conformity
		--
