FC COMPACT FREE-STANDING ENCLOSURES WITH SOLID DOOR

Compex compact stainless steel enclosures with solid door are designed to protect electrical panels from particularly aggressive substances and are therefore suitable for use in the food, pharmaceutical, chemical and naval industries, and can be customized with a range of standard accessories and special machining to customers’ requests. Meticulously designed details and structural sturdiness ensure maximum safety and functionality.

MICRO-CAST HINGES. Concealed stainless steel micro-cast hinges for enclosure doors that fit entirely within the enclosure opening.

RETRACTABLE INTERNAL PLATE. The internal plate is inserted from the front and is designed to make the most of the enclosure depth.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM Designed to make the most of the space available.

SAFE ROUNDED EDGES. To prevent accidental cuts when wiring the enclosure all the edges are bent and the corners blunted.

Point to each picture to read its caption

MICRO-CAST HINGES. Concealed stainless steel micro-cast hinges for enclosure doors that fit entirely within the enclosure opening.

RETRACTABLE INTERNAL PLATE. The internal plate is inserted from the front and is designed to make the most of the enclosure depth.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM Designed to make the most of the space available.

SAFE ROUNDED EDGES. To prevent accidental cuts when wiring the enclosure all the edges are bent and the corners blunted.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN 62208: IP66 IK10 UL508A – CSA 22,2:NEMA Type 1,12,4,4X ATEX: II 3G 3D
Materials	Stainless steel: AISI 304 / WNr. 1.4301. On request: AISI 316 / WNr. 1.4404. Finish: Scotch-Brite Thickness: struttura: da 1,5mm / porta e schiena: da 1,5mm Cable entry plate: galvanised sheet metal Thickness: 2,5 mm.
Body	Made from bent and TIG-welded sheet metal. High-seal M12 top and bottom bushings welded to the body for lifting the enclosure,or fixed to the plinth/feet.
Door	AISI 304 stainless steel concealed hinges; door opening greater than 120°. Cremone bolts on 4 points, ergonomic handle with 3 mm double bit lock (on demand AISI 304 and different inserts). Polyurethane gasket (temp. range -40°C +90°C). A drilled tubular frame strengthens the door and is used to install accessories (from B600mm up). Double door version: double hinged doors (with RH main door).
Provided	Grounding accessories and pallet packing.
Customization	Drilling to drawings and ad hoc solutions.
Accessories	Internal plate: inserted from the front Cable entry plates – double cable gland plates Plinths: h100 - h200 – closed bottom panel – feet Rain canopy – Hygienic design

MAXIMUM CAPACITIES

DOOR	STANDARD BACK PLATE	SIDE PANEL	TOTAL CAPACITY

Dimensional table available in the pdf version of the general catalogue. Request it here.

DIMENSION TABLE

DIMENSIONS			CODE	DOOR	WEGHT	INTERNAL PLATE DIMENSIONS		DRILLING AREA				CABLE ENTRY PLATE AREA			CERTIFICATION
	H	P				Bp	Hp	Bf	Bf1	Hf	Pf	Bb	Bb1	Pb	EN62208	UL/CSA	ATEX
mm	mm	mm		Nr°	Kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	EN60529 EN62262	On request	On request
600	1600	400	FCA06016040	1	83,00	500	1580	410	-	1485	350	410	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	1800	400	FCA06018040	1	92,00	500	1780	410	-	1685	300	410	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	1800	500	FCA06018050	1	99,00	500	1780	410	-	1685	400	410	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
600	2000	500	FCA06020050	1	108,00	500	1980	410	-	1885	400	410	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1600	400	FCA08016040	1	102,00	700	1580	610	-	1485	350	610	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1800	400	FCA08018040	1	113,00	700	1780	610	-	1685	300	610	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	1800	500	FCA08018050	1	121,00	700	1780	610	-	1685	400	610	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	2000	400	FCA08020040	1	125,00	700	1980	610	-	1885	300	610	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
800	2000	500	FCA08020050	1	133,00	700	1980	610	-	1885	400	610	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	1800	400	FCA10018040	1	134,00	900	1780	810	-	1685	300	810	-	210	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1000	2000	500	FCA10020050	1	157,00	900	1980	810	-	1885	400	810	-	310	IP66/IK10	NEMA 1,12,4,4X	II 3GD
1200	1600	400	FCA12016040	2	146,00	1100	1580	-	455	1485	300	-	410	210	IP55/IK10	NEMA 1,12	-
1200	1800	400	FCA12018040	2	163,00	1100	1780	-	455	1685	300	-	410	210	IP55/IK10	NEMA 1,12	-
1200	1800	500	FCA12018050	2	171,00	1100	1780	-	455	1685	400	-	410	310	IP55/IK10	NEMA 1,12	-
1200	2000	500	FCA12020050	2	187,00	1100	1980	-	455	1885	400	-	410	310	IP55/IK10	NEMA 1,12	-
1600	1800	400	FCA16018040	2	209,00	1500	1780	-	655	1685	300	-	610	210	IP55/IK10	NEMA 1,12	-
1600	2000	500	FCA16020050	2	240,00	1500	1980	-	655	1885	400	-	610	310	IP55/IK10	NEMA 1,12	-

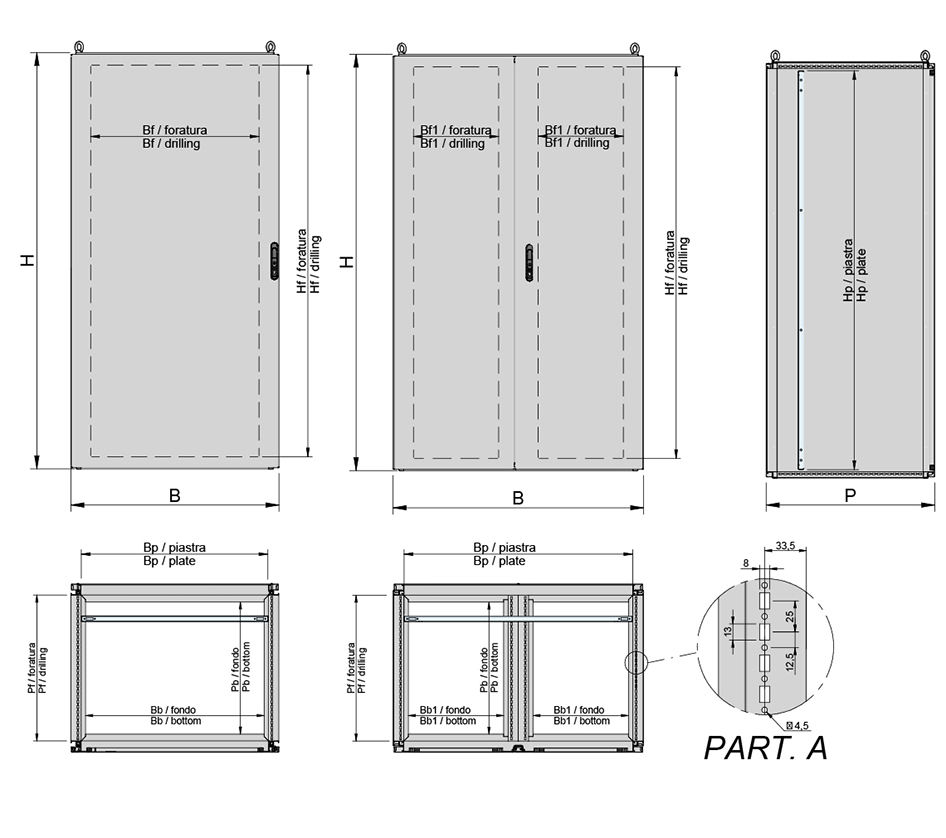

TECHNICAL DRAWING
