Electrical Enclosure Accessories

Wall brackets, rain canopy, lock systems and door profile kit and more

Compex selection of switchboards and command containers is completed with a series of accessories for watertight boxes: internal plate, inner door, rain canopy, wall brackets, lock systems and print pocket.
REMEMEBER: according to the type (see the technical specifications for each item) accessories can be installed by the customer at any time, or the company will provide installation service if requested.

INTERNAL PLATE
WALL BRACKETS
INNER DOOR
PRINT POCKETS
RAIN CANOPY
LOCK SYSTEMS
CABLE ENTRY PLATES
DOOR PROFILE KIT
DOOR RETAINER SYSTEMS

Tables for each accessories available in the pdf version of the general catalogue. Request it here

Internal Plate

Description: internal plate to facilitate equipment installation.
Material: galvanised sheet metal. Thickness: 2.5 mm.
On request: Aisi 316 / Wnr 1.4404 stainless steel. Thickness: 2.0 mm.
Quantity: pack of 1.
INSTALLATION: by customer.

ASSEMBLY INSTRUCTIONS
EXPRESS, CUSTOMIZED DRILLING SERVICE

ENCLOSURE DIMENSIONS		CODE	WEIGHT	DIM. INTERNAL PLATE		PACK
B	H			B	H
mm	mm		Kg	mm	mm	Pz
200	300	CPE020030	1	147	270	1
300	300	CPE030030	1,7	247	270	1
300	400	CPE030040	2,2	247	370	1
400	400	CPE040040	3,1	347	370	1
400	500	CPE040050	4,3	347	470	1
400	600	CPE040060	4,8	347	570	1
450	450	CPE045045	4,3	397	420	1
450	600	CPE045060	5,5	397	570	1
500	500	CPE050050	5,7	447	470	1
500	700	CPE050070	8	447	670	1
600	450	CPE060045	6,2	547	420	1
600	600	CPE060060	8,3	547	570	1
600	750	CPE060075	10,4	547	720	1
600	800	CPE060080	11,1	547	770	1
600	900	CPE060090	12,4	547	870	1
600	1200	CPE060120	16,6	547	1170	1
800	800	CPE080080	14,9	747	770	1
800	1000	CPE080100	18,6	747	970	1
800	1200	CPE080120	22,3	747	1170	1
1000	750	CPE100075	17,6	947	720	1
1000	1000	CPE100100	23,4	947	970	1
1000	1200	CPE100120	28,1	947	1170	1
1200	800	CPE120080	22,6	1147	770	1

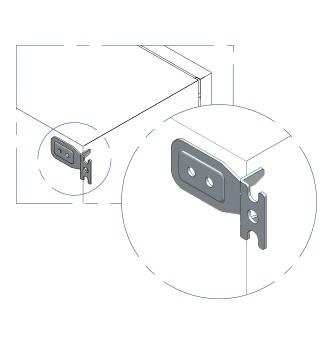

Wall Brackets

Description:
A: internal plate to facilitate equipment installation.
B: multiple drilled wall mounting brackets with grounding system.
Material: Aisi 304 / Wnr 1.4301 stainless steel.
Max. load-bearing capacity of 2 brackets: 200 kg
Quantity: pack of 2 with mounting screws.
INSTALLATION: by customer.

ASSEMBLY INSTRUCTIONS

	DESCRIPTION	CODE	PACK
A	WALL MOUNTING BRACKET SET	ZB000501	2 Pz
B	WALL MOUNTING BRACKET SET WITH GROUNDING SYSTEM	ZB000503	2 Pz

Inner Door

Description: inner door for equipment installation, adjustable depth and IP20 protection rating.
Material: Aisi 304 / Wnr 1.4301 stainless steel. Finish: Scotch-Brite.
Quantity: pack of 1 with brackets and mounting screws.
INSTALLATION: on request.

ASSEMBLY INSTRUCTIONS
EXPRESS, CUSTOMIZED DRILLING SERVICE

ENCLOSURE DIMENSIONS		CODE	WEIGHT	INTERNAL PLATE DIMESNIONS			PACK
B	H			B	H	P
mm	mm		Kg	mm	mm	mm	Pz
300	400	ZB002000	1,8	215	325	45÷60	1
400	500	ZB002001	3	315	425	45÷60	1
450	450	ZB002002	3	365	375	45÷60	1
450	600	ZB002003	4	365	525	45÷60	1
500	700	ZB002004	5,2	415	625	45÷60	1
600	600	ZB002005	5,2	515	525	45÷60	1
600	800	ZB002006	7	515	725	45÷60	1
600	900	ZB002007	7,8	515	825	45÷60	1
800	1000	ZB002008	11,6	715	925	45÷60	1
800	1200	ZB002009	14	715	1125	45÷60	1

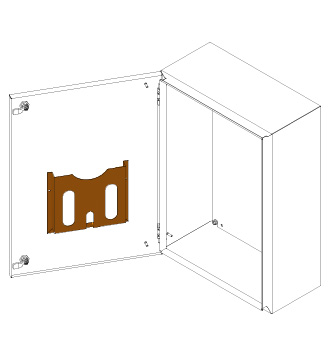

Print pockets

Description: print pocket for DIN-A4 sheets.
Material: thermoplastic material with double sided adhesive tape.
Quantity: pack of 1.
INSTALLATION: by customer.

DESCRIPTION	MATERIAL	CODE	PACK
DIN-A4 PRINT POCKET	PVC	ZG003000	1

Cable Entry Plates

Description: gland plates for cable entry
Material: Aisi 304 / Wnr 1.4301 stainless steel, on request AISI 316 / Wnr 1.4404. Finish: Scotch-Brite.
Quantity: pack of 1.
INSTALLATION: on request.

ASSEMBLY INSTRUCTIONS

SUITABLE FOR	SUITABLE FOR ENCLOSURE DIMENSIONS		CODE	DIMENSIONS		No. FIXING POINTS	PACK	ERTIFICATION
								C UR US
	B	P		B	P	PZ	PZ	Type Nema
	mm	mm		mm	mm
CC – CL – CH	300	150	ZB000001	300	100	4	1	1,12,4,4X
	300	210
CC – CL – CH	400	210	ZB000002	400	150	6	1	1,12,4,4X
	450	210/250
CC – CL – CH	500	210	ZB000003	500	150	6	1	1,12,4,4X
	600	210
CC – CL – CH	500	250	ZB000004	500	200	6	1	1,12,4,4X
	600	250
CC – CL – CH	600	300/400	ZB000005	500	250	6	1	1,12,4,4X
	800	300/400
	1000	300/400
	1200	300/400

Door Profile Kit

Description: profiles for installing accessories onto the door.
Material: galvanised sheet metal. Thickness: 2.0 mm.
On request: Aisi 304 / Wnr 1.4301 stainless steel, thickness: 2.0 mm.
Quantity: pack of 2.
INSTALLATION: by customer.

ASSEMBLY INSTRUCTIONS

DOOR DIMENSIONS	CODE	PACK
H		PZ
mm
400	ZB006000	2
450	ZB006001	2
500	ZB006002	2
600	ZB006003	2
700	ZB006004	2
750	ZB006005	2
800	ZB006006	2
900	ZB006007	2
1000	ZB006008	2
1200	ZB006009	2

Door retainer Systems

Description: door retainers and gas struts for lifting and holding the enclosure door in place
Material: see table below.
Quantity: see table below.
INSTALLATION: on request.

ASSEMBLY INSTRUCTIONS

CODE	DESCRIPTION	MATERIAL	FORCE	PACK
			N
ZG001000	MECHANICAL DOOR RETAINER	GALVANIZED		1
ZG001001	MECHANICAL DOOR RETAINER	AISI 304		1
ZG001002	GAS STRUTS		110	1
ZG001003	GAS STRUTS		200	1
ZG001004	GAS STRUTS		400	1
ZG001005	FLAT BRACKET	AISI 304		1
ZG001006	L-SHAPED BRACKET	AISI 304		1
ZG001007	U-SHAPED BRACKET	AISI 304		1

Rain Canopy

Description: 10° sloping rain canopy with 50 mm front projection to provide better protection for the enclosure.
Material: Aisi 304 / Wnr 1.4301 stainless steel, on request AISI 316 / Wnr 1.4404.
Finish: Scotch-Brite.
Quantity: pack of 1 with mounting screws.
INSTALLATION: by customer.

ASSEMBLY INSTRUCTIONS

ENCLOSURE DIMENSIONS		CODE	RAIN CANOPY DIMENSIONS				PACK
B	P		B	H1	H2	P
mm	mm		mm	mm	mm	mm	Pz
200	150	ZB001010	200	55	25	175	1
300	210	ZB001011	300	55	25	235	1
400	210	ZB001012	400	55	25	235	1
450	210	ZB001013	450	55	25	235	1
450	250	ZB001014	450	55	25	275	1
B2	210	ZB001015	500	55	25	235	1
500	250	ZB001016	500	55	25	275	1
600	250	ZB001017	600	55	25	275	1
600	300	ZB001018	600	55	25	325	1
600	400	ZB001019	600	55	25	425	1
800	300	ZB001020	800	55	25	325	1
800	400	ZB001021	800	55	25	425	1
1000	300	ZB001022	1000	55	25	325	1
1200	300	ZB001023	1200	55	25	325	1

Lock Systems

Description: locks and handles alternative to standard.
Material: verchromter Zamak- Edelstahl Aisi 304 / WNr 1.4301.
Quantity: pack of 1 with mounting screws.
INSTALLATION: by customer.

ASSEMBLY INSTRUCTIONS

	DESCRIPTION	MATERIAL	CODE	PACK
1	LOCK WITH 3MM DOUBLE BIT INSERT	CROMO	ZG000101	1
1	LOCK WITH 3MM DOUBLE BIT INSERT	STAINLESS STEEL	ZG000102	1
2	LOCK WITH 8MM SQUARE INSERT	STAINLESS STEEL	ZG000103	1
3	LOCK WITH TRIANGULAR INSERT	STAINLESS STEEL	ZG000104	1
4	HYGIENIC LOCK WITH KEY	STAINLESS STEEL	ZG000105	1
5	WING KNOB LOCK WITH KEY	ZAMAK	ZG000106	1
6	T HANDLE LOCK WITH KEY	ZAMAK	ZG000107	1
7	DOUBLE BIT INSERT KEY	ZAMAK	ZG000108	1
	SQUARE INSERT KEY	ZAMAK	ZG000109	1
	KEY WITH TRIANGULAR INSERT	ZAMAK	ZG000110	1
8	ALE KEY WITH EK333 CUTS	ZAMAK	ZG000111	2
9	UNIVERSAL KEY	POLYAMIDE	ZG000119	2
