CL ENCLOSURES WITH POLYCARBONATE DOOR

Low voltage watertight stainless steel enclosures with door with a clear polycarbonate window. Designed for use in harsh environments with very high temperatures, ideal for the food, naval, chemical and petrochemical industries. These enclosures can be customized with a range of standard accessories, special machining and ad hoc or co-designed solutions to customers’ requests.

SAFE ROUNDED EDGES. To prevent accidental cuts when the enclosures are handled all the edges are bent and the corners blunted.

POLYURETHANE GASKET. Operating temperature range:-40°C +90°C.

REAR FIXING DEVICES. For fixing the enclosure to the wall (or directly onto equipment) without the need for machining that could alter the protection rating.

MICRO-CAST HINGES MICRO-CAST HINGES in stainless steel with opening greater than 120°.

Point to each picture to read its caption

SAFE ROUNDED EDGES. To prevent accidental cuts when the enclosures are handled all the edges are bent and the corners blunted.

POLYURETHANE GASKET. Operating temperature range:-40°C +90°C.

REAR FIXING DEVICES. For fixing the enclosure to the wall (or directly onto equipment) without the need for machining that could alter the protection rating.

MICRO-CAST HINGES MICRO-CAST HINGES in stainless steel with opening greater than 120°.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN62208: IP66 IK10 UL508A - CSA 22,2: NEMA Type 1,12,4,4X
Materials	Stainless steel AISI 304 / WNr. 1.4301 On request AISI 316 / WNr. 1.4404 Finish: Scotch-Brite. Thickness: from 1,2 mm. Cable entry plate: galvanised sheet metal. Thickness: 2,5 mm.
Body	Single-body construction bent and continuously welded, four M6 blind bushes on the body for wall attachment without the need for machining.
Door	Door: AISI 304 stainless steel concealed hinges; door opening greater than 120°. 4mm thick transparent polycarbonate window. Chromed zamak 3mm double bit lock (on demand, AISI 304 and different inserts). Perimeter polyurethane gasket (temp. range -40°C +90°C).
Provided	Grounding accessories and cardboard packing
Customization	Drilling to drawings and ad hoc solutions.
Accessories	Cable entry plate. Inner door. Rain canopy. Wall brackets. Lock systems. Print pocket.

MAXIMUM CAPACITIES

DOOR	STANDARD BACK PLATE	2 WALL BRACKETS	TOTAL CAPACITY

Dimensional table available in the pdf version of the general catalogue. Request it here.

DIMENSION TABLE

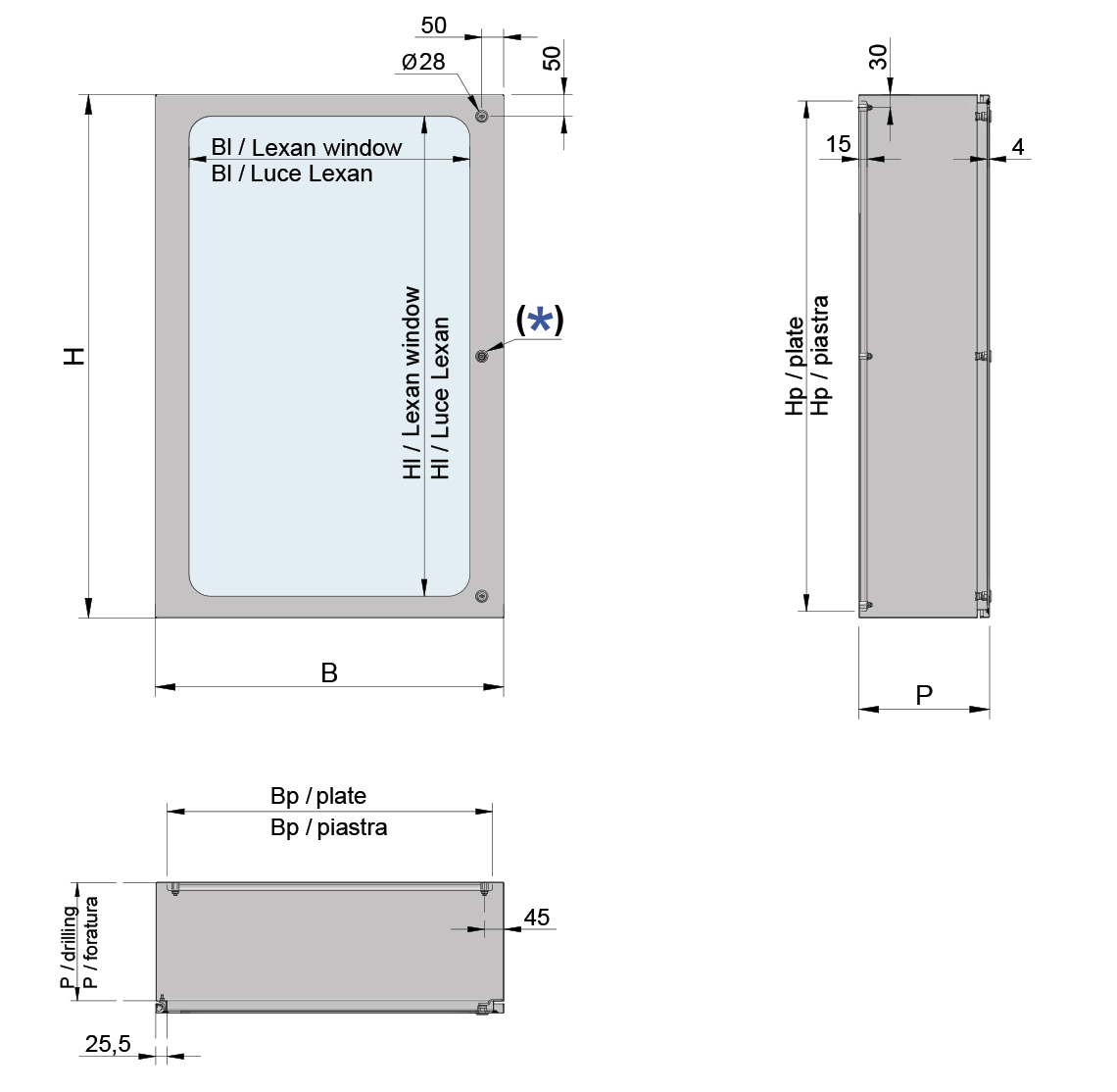

DIMENSIONS			ITEM CODE	DOOR	WEGHT	INTERNAL PLATE DIMENSIONS		INTERNAL PLATE CODE	LEXAN PANEL DIMENSIONS AND DRILLING AREA			CERTIFICATION
B	H	P				Bp	Hp		Bl	Hl	Pf	EN62208	UL/CSA
mm	mm	mm		Nr°	Kg	mm	mm		mm	mm	mm	EN60529-EN62262	On request
300	400	210	CLA03004021	1	11,20	247	370	CPE030040	160	260	185	IP66 – IK10	NEMA 1,12,4,4X
400	400	210	CLA04004021	1	13,20	347	370	CPE040040	260	260	185	IP66 – IK10	NEMA 1,12,4,4X
400	500	210	CLA04005021	1	15,20	347	470	CPE040050	260	360	185	IP66 – IK10	NEMA 1,12,4,4X
400	600	210	CLA04006021	1	17,10	347	570	CPE040060	260	460	185	IP66 – IK10	NEMA 1,12,4,4X
450	450	210	CLA04504521	1	15,30	397	420	CPE045045	310	310	185	IP66 – IK10	NEMA 1,12,4,4X
450	600	250	CLA04506025	1	20,60	397	570	CPE045060	310	460	225	IP66 – IK10	NEMA 1,12,4,4X
500	500	210	CLA05005021	1	17,50	447	470	CPE050050	360	360	185	IP66 – IK10	NEMA 1,12,4,4X
500	700	250	CLA05007025	1	24,40	447	670	CPE050070	360	560	225	IP66 – IK10	NEMA 1,12,4,4X
600	600	250	CLA06006025	1	24,40	547	570	CPE060060	460	460	225	IP66 – IK10	NEMA 1,12,4,4X
600	600	300	CLA06006030	1	27,80	547	570	CPE060060	460	460	275	IP66 – IK10	NEMA 1,12,4,4X
600	600	400	CLA06006040	1	34,10	547	570	CPE060060	460	460	375	IP66 – IK10	NEMA 1,12,4,4X
600	800	300	CLA06008030	1	35,20	547	770	CPE060080	460	660	275	IP66 – IK10	NEMA 1,12,4,4X
600	900	400	CLA06009040	1	45,10	547	870	CPE060090	460	760	375	IP66 – IK10	NEMA 1,12,4,4X
800	1000	300	CLA08010030	1	55,50	747	970	CPE080100	660	860	275	IP66 – IK10	NEMA 1,12,4,4X
800	1200	300	CLA08012030	1	63,40	747	1170	CPE080120	660	1060	275	IP66 – IK10	NEMA 1,12,4,4X
800	1200	400	CLA08012040	1	73,50	747	1170	CPE080120	660	1060	375	IP66 – IK10	NEMA 1,12,4,4X
